FC150LC(S)-0303JY
| Specifications | FC150LC(S)-0303JY |

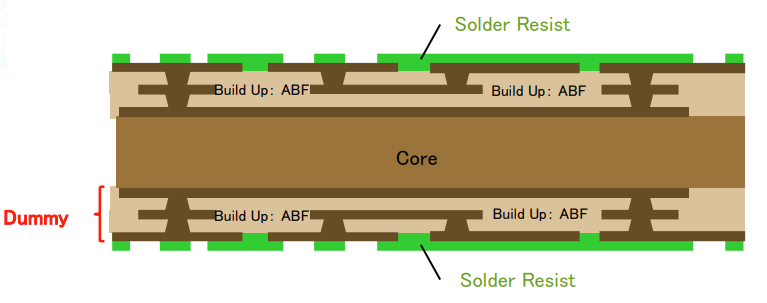

| Structure | 2-2-2 Build up Substrate |
| Outline | 55mm×55mm×(0.66mmt) |
| Function | Daisy Chain / Connection Resistance |
| Pad Dimension | 0.75mm×1.1mm (SR opening: 0.65mm×1.0mm) |
| Number of Measurement Pad | 240 pads |

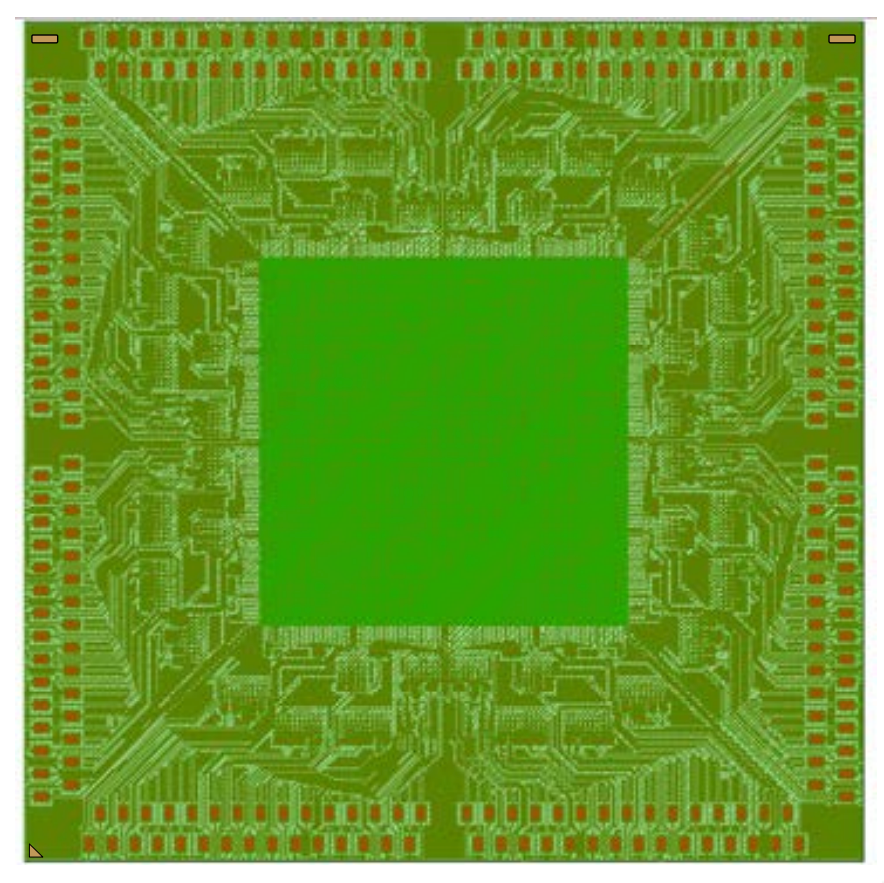

| FCA Area | ・Pad pitch: 150μm pitch full array ・SR opening：φ85μm ・Number of pad：25,921 pads (161×161Matrix) |
| Electrode |
|
