Click here to learn about the new Privacy Policy updates from Practical Components.Wafer Size | 8 inch |
Wafer Thickness | 725±25μm |
Chip Size | 20.0mm■ |
Layer | Layer1: wiring layer |
Metal Material | Cu |
Cu Thickness | 3~4μm |
Number of Pad | 36 pads |
Pad Size | 160μm■ |
Measurement Pad Size | 2.2mm● |
Number of Chip | 57 chips |

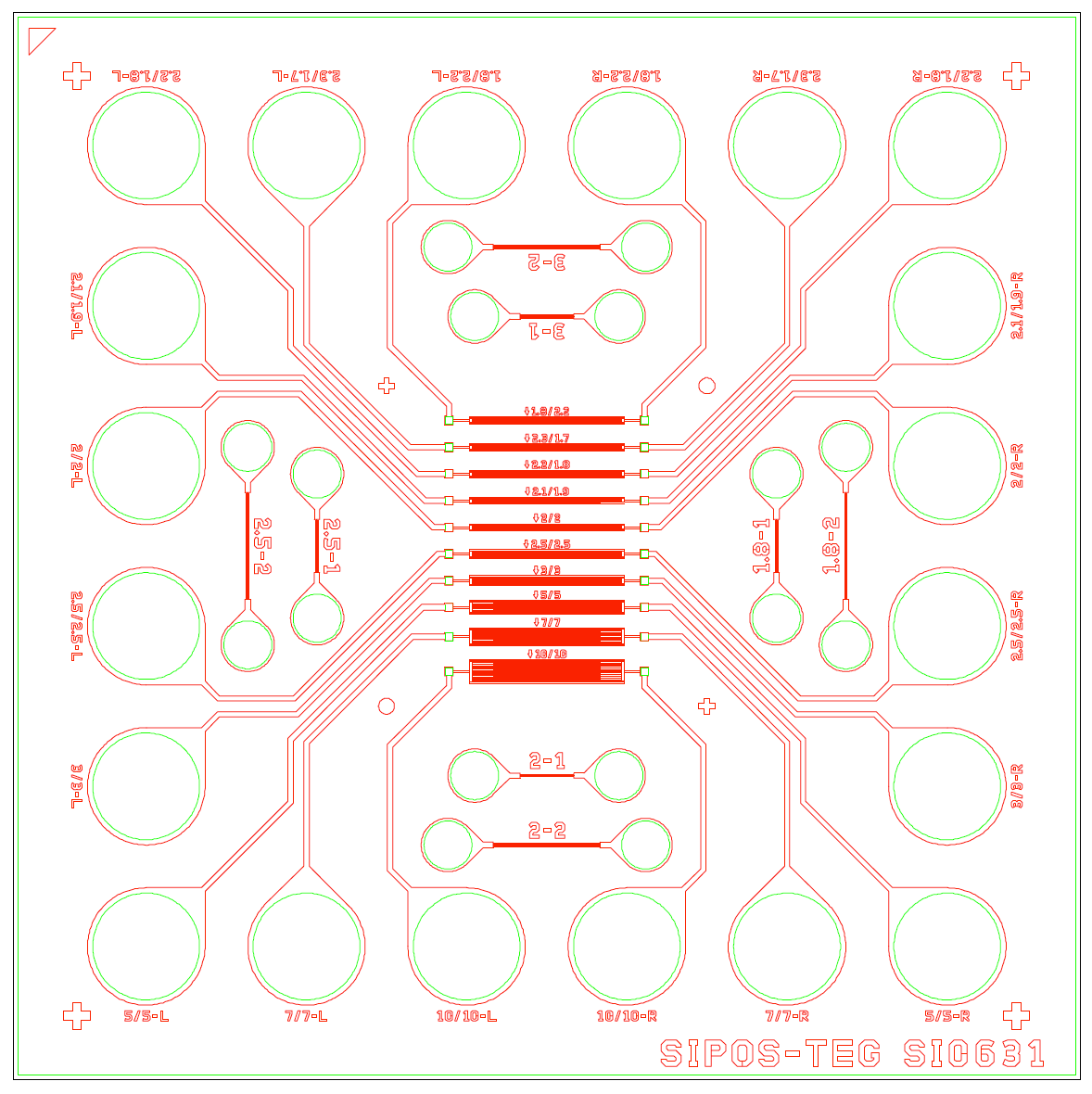

Evaluation Pattern |
Comb pattern *interdigital pattern length:2mm Wiring pattern for break check |
