TSOP
Thin Small Outline Package

Thin Small Outline Packages (TSOP) are thin body size components; thickness is 1.0mm. TSOP packages have four sides and are rectangular. Type I TSOPs have the leads protruding from the width portion of the package. Lead counts range from 28 to 48. Package body size ranges from 8x11.8mm to 12x20mm.

TSOP Thin Small Outline Package - Type I

Part Description

Number
of Pins

Body Size

Lead
Pitch

Quantity
Per Tray

Tape
Width

Tape
Pitch

Quantity
13" Reel

A-TI-TSOP28-8.1x11.8mm-.55mm

28

8.1 x 11.8mm

.55mm

234

24mm

12mm

1,000

A-TI-TSOP32-8x11.8mm-.5mm

32

8 x 11.8mm

.5mm

234

24mm

12mm

1,000

A-TI-TSOP32-8x18.4mm-.5mm

32

8 x 18.4mm

.5mm

156

32mm

12/16mm

1,000

A-TI-TSOP48-12x18.4mm-.5mm

48

12 x 18.4mm

.5mm

96

32mm

16mm

1,000

TSOP Thin Small Outline Package - Type II
Type II TSOP are becoming obsolete. Practical has some stock. Please call for availability.

Notes

* Standard packaging is in JEDEC trays or tape and reel
(quantities may vary).

* Body dimensions are measured by body length and width.

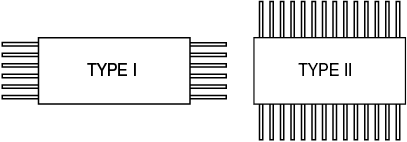

* Type I means that pins extend from the narrow end (the width) of the body.

* Parts available on Tape and Reel upon special request.

* See chart for 100% Matte Sn, SnPb, and SnBi availability.

* Type II means that pins extend from the wide end (the length) of the body. Type II TSOP are becoming obsolete. Practical has some stock. Please call for availability.


Part Description System



* Add "T" to end of part number for Tray.

* Add "TR" to end of part number for Tape and Reel.

* Add specific finish to end of part number for Lead-Free, i.e Sn or SnBi.
