PC013-Through-Hole-Solder Training Kits


PC013-Through-Hole-Solder Training Kits

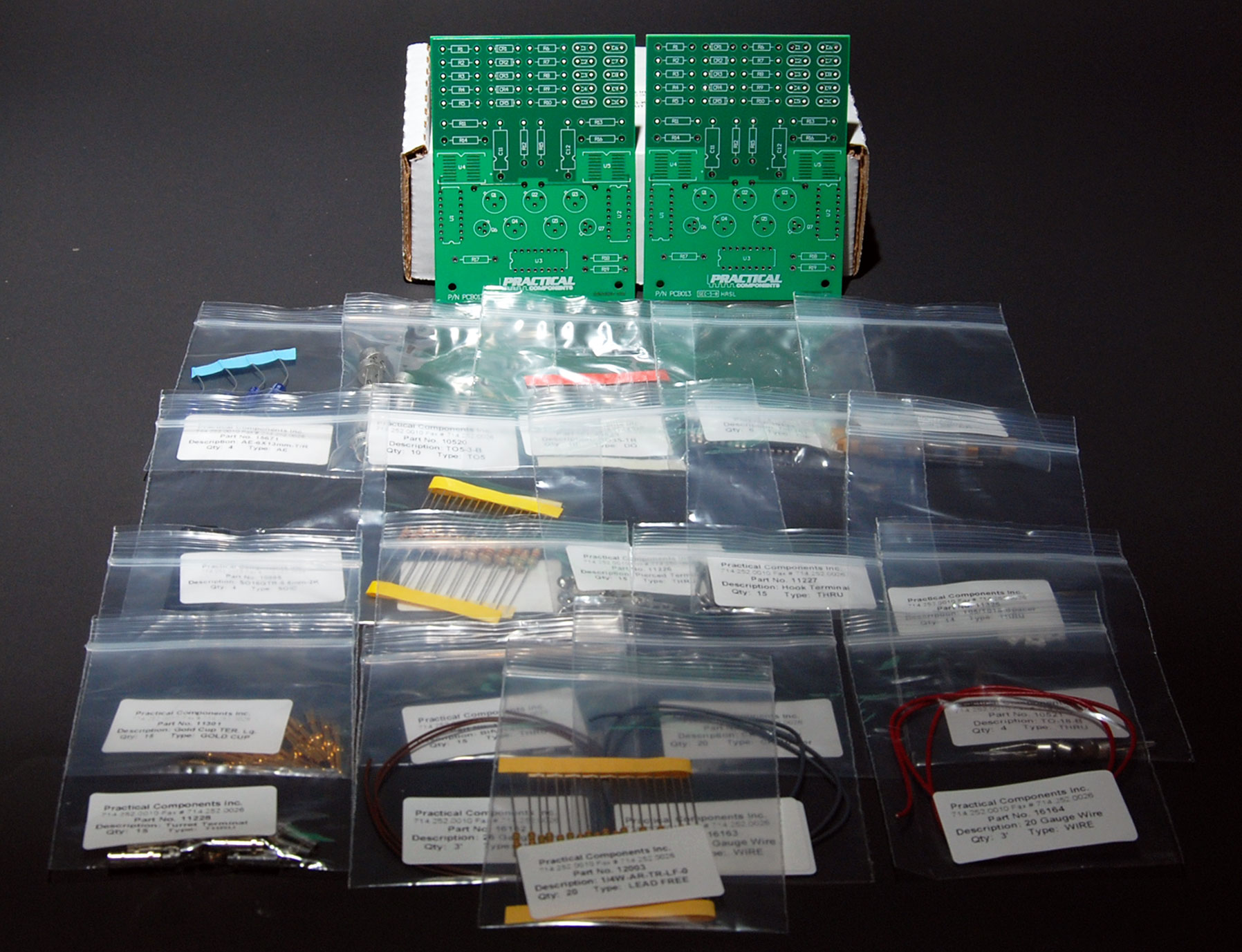

The PC013 hand solder practice kit is an effective way to evaluate or train employees and students. This versatile board comes with a variety of through-hole components and each kit is conveniently boxed and the components are individually bagged and labeled for easy identification. It is available in several different options to meet each company’s requirements. Kits come standard with an SO16 resistor network, but can be upgraded to a Flat Pack 16. This kit is ideal for classroom settings.



Online purchase only available for shipment to the USA.



For other options phone 1 (714) 252-0010 or email info@practicalcomponents.com



Standard USA shipping via Fedex ground.  Call for other carriers.



For international orders import duties, taxes and charges are not included in the item price nor shipping charges. These charges are the buyer's responsibility.



(Please supply your FedEx or UPS account number if shipping to Canada for duties, taxes and charges)



Basic Through-Hole Kit
Part Description Quantity Per Kit
 PCB013 (customer to specify finish) 2
DO35  10
AE-5x12  4
CK05  20
CK05 Spacer  20
1/2-W-AR  18
1/4-W-AR  20
DIP16  6
TO5  10
TO18  4
TO5/18 Spacer  14
SO16GT-3.8mm  4

Kit Order Number: (Lead-Free) PC013-BTK-LF
Kit Order Number: (Tin-Lead) PC013-BTK
Complete Through-Hold Kit
Part Description Quantity Per Kit
PCB013 2
Turret Terminal  15
Bifrucated Terminal  15
Hook Terminal  15
Pierced Terminal  15
Cup Terminal  15
DO35  10
AE-5x12  4
CK05  20
CK05 Spacer  20
1/4-W-AR  20
1/2-W-AR  18
DIP16  6
TO5  10
TO18  4
TO5/18 Spacer  14
SO16GT-3.8mm  4
20 Guage Wire  3'
22 Guage Wire  3'
26 Guage Wire  3'

Kit Order Number: (Tin-Lead) PC013-K
Kit Order Number: (Lead-Free) PC013-K-LF



Recertification Kit With Wires And Terminals
Part Description Quantity Per Kit
PCB013 1
Turret Terminal 5
Bifrucated Terminal  5
Hook Terminal  5
Pierced Terminal  5
Cup Terminal  5
DO35  2
AE-5x12  1
CK05  6
CK05 Spacer  6
1/4-W-AR  5
1/2-W-AR  3
DIP16  2
TO5  2
TO18  2
TO5/18 Spacer  4
SO16GT-3.8mm  1
20 Guage Wire 5'
26 Guage Wire  5'

Kit Order Number: (Tin-Lead) PC013-RWTK-1
Kit Order Number: (Lead-Free) PC013-RWTK-1-LF
Recertification Kit
Part Description Quantity Per Kit
PCB013 1
DO35  2
AE-5x12  1
CK05  6
CK05 Spacer  6
1/4-W-AR  5
1/2-W-AR  3
DIP16  2
TO5  2
TO18  2
TO5/18 Spacer  4
SO16GT-3.8mm  1

Kit Order Number: (Tin-Lead) PC013-RK
Kit Order Number: (Lead-Free) PC013-RK-LF


Pricing
  Price Qty Type Description
$59.00 PC013-K-HASL Complete Tin-Lead PN 15212
$65.00 PC013-K-LF-ImAg Complete Lead-Free PN 16792
$0.00 Call for other options. 714-252-0010
