Plastic Leaded Chip Carrier PLCC (PLCC)
PLCC
Plastic Leaded Chip Carrier

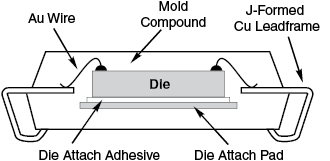

Plastic Leaded Chip Carriers (PLCC) are four-sided "J" Leaded Plastic body packages. Lead counts range from 20 to 84. PLCC packages can be square or rectangle. Body sizes range from .35" to 1.15". PLCCs are JEDEC standard compliant. The PLCC "J" Lead configuration requires less board space versus equivalent gull leaded components.
|
PLCC Plastic Leaded Chip Carrier |
|||||||
|
Part Description |
Pin Count |
Body Size |
Quantity |
Part Description |
Tape Width |
Tape Pitch |
Quantity |
|
PLCC20T |
20 |
8.8mm |
48 |
PLCC20TR |
16mm |
12mm |
1,000 |
|
PLCC28T |
28 |
11.4mm |
38 |
PLCC28TR |
24mm |
16mm |
750 |
|
PLCC32T |
32 |
11.4 x 13mm |
30 |
PLCC32TR |
24mm |
16mm |
750 |
|
PLCC44T |
44 |
16.5mm |
27 |
PLCC44TR |
32mm |
24mm |
450/500 |
|
PLCC52T |
52 |
19.0mm |
24 |
PLCC52TR |
32mm |
24mm |
450 |
|
PLCC68T |
68 |
24.1mm |
18 |
PLCC68TR |
44mm |
32mm |
230/250 |
|
PLCC84T |
84 |
29.2mm |
15 |
PLCC84TR |
44mm |
36mm |
250 |
Notes
* All PLCCs have "J" leads.
* Standard lead pitch is 1.27mm (50 mils).
* PLCCs are to JEDEC standards.
* Tube quantity may vary.
* 13" reels are standard.
* Parts available on Tape and Reel.
* Moisture sensitivity is JEDEC level 3.
* Lead-free parts are available with 100% Matte Sn finish.
Part Description System
* Packaging: T=Tubes, TR=Tape and Reel.
* Add "Sn" to end of part number for Lead-Free.
|
PLCC Component Dimensions |
|||||||||||||||
|
Component |
L (mm) |
S (mm) |
W (mm) |
T (mm) |
A (mm) |
B (mm) |
J (mm) |
H (mm) |
P (mm) |
||||||
|
Min |
Max |
Min |
Max |
Min |
Max |
Min |
Max |
Min |
Max |
Min |
Max |
Ref |
Max |
Basic |
|
|
PLCC-20 |
9.78 |
10.03 |
5.78 |
6.53 |
0.33 |
0.53 |
1.50 |
2.00 |
8.89 |
9.04 |
8.89 |
9.04 |
7.87 |
4.57 |
1.27 |
|
PLCC-28 |
12.32 |
12.57 |
8.32 |
9.07 |
0.33 |
0.53 |
1.50 |
2.00 |
11.43 |
11.58 |
11.43 |
11.58 |
10.41 |
4.57 |
1.27 |
|
PLCC-44 |
17.40 |
17.65 |
13.40 |
14.15 |
0.33 |
0.53 |
1.50 |
2.00 |
16.51 |
16.66 |
16.51 |
16.66 |
15.49 |
4.57 |
1.27 |
|
PLCC-52 |
19.94 |
20.19 |
15.94 |
16.69 |
0.33 |
0.53 |
1.50 |
2.00 |
19.05 |
19.20 |
19.05 |
19.20 |
18.03 |
5.08 |
1.27 |
|
PLCC-68 |
25.02 |
25.27 |
21.02 |
21.77 |
0.33 |
0.53 |
1.50 |
2.00 |
24.13 |
24.33 |
24.13 |
24.33 |
23.11 |
5.08 |
1.27 |
|
PLCC-84 |
30.10 |
30.35 |
26.10 |
26.85 |
0.33 |
0.53 |
1.50 |
2.00 |
29.21 |
29.41 |
29.21 |
29.41 |
28.19 |
5.08 |
1.27 |
|
PLCC Land Patterns |
||||||||
|
Component |
Z (mm) |
G (mm) |
X (mm) |
Y (mm) |
C (mm) |
D (mm) |
E (mm) |
Placement Grid |
|
Ref |
Ref |
Ref |
Ref |
|||||
|
PLCC-20 |
10.80 |
6.40 |
0.60 |
2.20 |
8.60 |
5.08 |
1.27 |
24 x 24 |
|
PLCC-28 |
13.40 |
9.00 |
0.60 |
2.20 |
11.20 |
7.62 |
1.27 |
30 x 30 |
|
PLCC-44 |
18.40 |
14.00 |
0.60 |
2.20 |
16.20 |
12.70 |
1.27 |
40 x 40 |
|
PLCC-52 |
21.00 |
16.60 |
0.60 |
2.20 |
18.80 |
15.24 |
1.27 |
44 x 44 |
|
PLCC-68 |
26.00 |
21.60 |
0.60 |
2.20 |
23.80 |
20.32 |
1.27 |
54 x 54 |
|
PLCC-84 |
31.20 |
26.80 |
0.60 |
2.20 |
29.00 |
25.40 |
1.27 |
66 x 66 |
