FC150

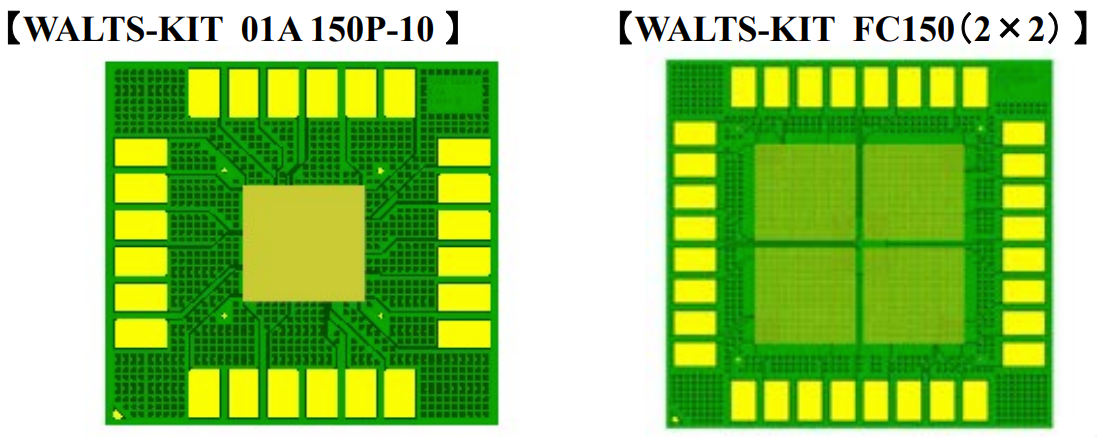

Name of Commodity	01A150P(S)-10-3	FC150(S)-0106JY 2×2
Specifications	1x1	2x2
Structure	Rigid Substrate (Both)	Rigid Substrate (Both)
Outline	30.0mm×30.0mm× (0.976mmt)	35.0mm×35.0mm×(0.976mmt)
Function	Daisy Chain	Daisy Chain
Land Size	φ0.12mm●	φ0.12mm●
Number of Lead	3721 (61×61)	14884(3721/chip×4)
SR Opening	φ80μm●	φ80μm●
Number of Measurment Pad	24 pads	32 pads
Daisy Chain	Center Area 16×15 Matrix Corner Area 15×15 four Matrix	Center Area 30×30 Matrix Corner Area 15×15 four Matrix
Surface Spec of Electrode	Cu + OSP (option Solder Coat) Electroless Ni/Au plating	Cu + OSP (option Solder Coat)
		*OSP: Organic Solderability Preservatives
