Chip Quick® SMD Removal System




REDUCE HEAT—REDUCE DAMAGE!



USE CHIP QUICK® TO CLEAN UP SMD AND BGA BOARDS.

Simply by adding Chip Quik®, normal solder will reflow at a safe low temperature below 150ºC (300ºF). Remove QFPs, PLCCs, SOICs and chip components without complex and costly equipment. A large inventory stock of heater tips and nozzles are not required.



REDUCING THE SOLDER REFLOW TEMPERATURE PROVIDES THESE BENEFITS...



Eliminate

  • Heat damaged pads, leads and circuitry
  • Heat damaged solder joints of adjacent components
  • Thermal blisters, burns and board delamination
  • Mechanical damage from chip extraction when reflow is incomplete

Eliminate the rework and save the cost of

  • Lost time
  • Labor costs
  • Inconvenience
  • Lost boards from heat damage
  • Use Chip Quick® with existing rework equipment or temperature controlled soldering irons

Works on new, lead free solder!
Low Cost! Available in complete kits for field service and industrial packaging for rework departments.
No shelf life! No investment required.



SMD 2000
CHIP QUIK® COMPLETE SOLDER/DESOLDER REWORK KIT



Includes easy to follow complete rework instructions and recommended rework tools and materials, evaluated by Chip Quik labs.

Kit Contents

This kit contains the latest products available. Each individual item has been carefully selected to fill your rework needs.

  • Solder Paste—no clean rework paste with flux, 1 cc syringe with nozzle and cap
  • Paste flux—no clean, 1 cc syringe with nozzle and cap
  • Chip Quik® removal alloy—4.5 feet with instructions
  • Liquid flux remover—5 cc container and applicator
  • Probe kit—4 stainless steel dental picks
  • Solder wick—no clean, 5 feet
  • Handi Vac—pick and place tool, 2 tips
  • Acid brush—quantity 2
  • Precision tweezers—for SMD removal and placement
  • Cleaning wipers—tight weave, low lint 4" x 4", quantity 6
  • Swabs—double ended, quantity 10
  • Alcohol pads—quantity 6
  • Solder—3 feet 0.031 63/37 2% silver

Order Number: SMD2000

Material Safety Data Sheet (MSDS) available upon request.


SMD 1
CHIP QUIK® SMD REMOVAL KIT



Remove with solder iron or warm air bath.

Kit Contents

  • 2.5 feet Chip Quik® material. Removes 8–10 SMDs.
  • 1 cc syringe of Chip Quik® no clean rework paste flux.
  • Alcohol pads for clean up.
  • Complete instructions for SMD removal and cleanup.

Order Number: SMD1

Material Safety Data Sheet (MSDS) available upon request.


SMD CHIP QUIK® INDUSTRIAL PACKS



The same Chip Quik® material in 30 convenient 6.5" lengths with instructions. Order Number: SMD16

The same Chip Quik® material in 60 convenient 6.5" lengths with instructions. Order Number: SMD32

Material Safety Data Sheets (MSDS) available upon request.


SMD 291

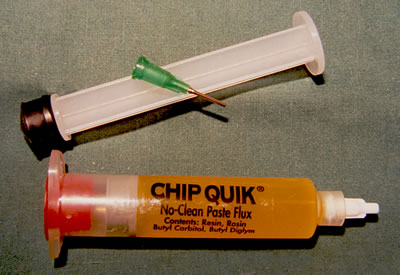

CHIP QUIK® NO CLEAN FLUX



The same flux used in the SMD 1. Ideal for all rework.

Order Number: SMD291

Material Safety Data Sheet (MSDS) available upon request.
