PC003-Hand Solder-Practice Board and Kit


PC003-Hand Solder-Practice Board and Kit

Tin-Lead and Lead-Free Kits are available

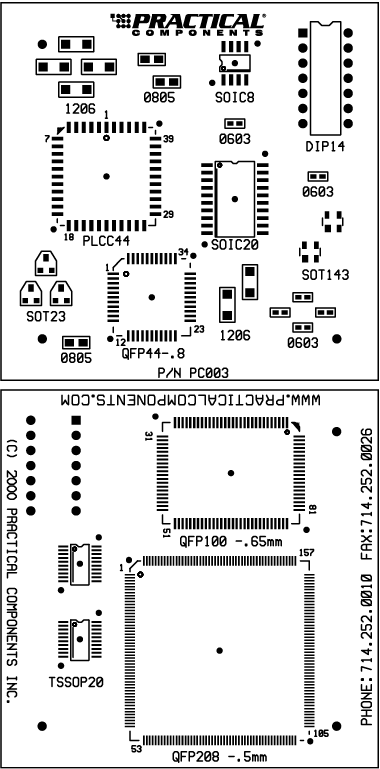

The PC003 hand solder practice kit is a low cost, effective kit for training and testing employees. This double-sided board has pads for 13 different components: One through-hole Dip14 and twelve surface-mount components. Each item is individually bagged and tagged for easy identification. Kits consist of PLCCs, SOICs, TSSOPs, SOTs, Passives, and QFPs with 0.5mm and 0.65mm pitch. This low cost kit is ideal for classroom training and practice. IPC-A-610 Rev D compliant. Kit is available with Tin-Lead or Lead-Free components.

Notes

* Gerber Data and X, Y Theta Data are available at no charge.

* Lead-Free parts are available with Sn finish.

 Order Number: PCB003 Rev B (Board Only)



Online purchase only available for shipment to the USA.



For other options phone 1 (714) 252-0010 or email info@practicalcomponents.com



Standard USA shipping via Fedex ground.  Call for other carriers.



For international orders import duties, taxes and charges are not included in the item price nor shipping charges. These charges are the buyer's responsibility.

(Please supply your FedEx or UPS account number if shipping to Canada for duties, taxes and charges)







Pricing
  Price Qty Type Description
$31.00 PC003 LF ImAg Lead-Free PN 12086
$31.00 PC003 Tin-Lead ImAg Tin-Lead ImAg PN 10680
