Thin Shrink Small Outline Package (TSSOP)

TSSOP
Thin Shrink Small Outline Package

The Thin Shrink Small Outline Package (TSSOP) offers smaller body sizes, smaller lead pitches and package thickness (0.9mm thick) than standard SOIC packages. Body widths are 3.0mm, 4.4mm and 6.1mm. Lead counts range from 8 to 80. This package conforms to JEDEC package outlines.

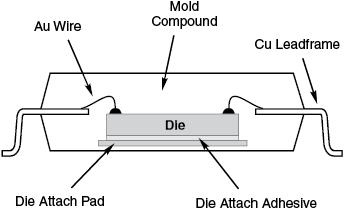

TSSOP Thin Shrink Small Outline Package
Part Description	Number of Pins	Body Width	Pitch	Tape Width	Tape Pitch	Quantity Per Tube	Quantity Per Reel
A-TSSOP8T-3.0mm	8	3.0mm	.65mm	12mm	8mm	98	2,500
A-TSSOP8T-4.4mm	8	4.4mm	.65mm	12/16mm	8mm	100	1,000/2,500
A-TSSOP10T-3.0mm	10	3.0mm	.5mm	12mm	8mm	98	2,500
A-TSSOP14T-4.4mm	14	4.4mm	.65mm	12/16mm	8mm	96	1,000/2,500
A-TSSOP16T-4.4mm	16	4.4mm	.65mm	12/16mm	8mm	96	1,000/2,500
A-TSSOP20T-4.4mm	20	4.4mm	.65mm	16mm	8/12mm	74	1,000/2,500
A-TSSOP24T-4.4mm	24	4.4mm	.65mm	16mm	8/12mm	62	1,000/2,500
A-TSSOP28T-4.4mm	28	4.4mm	.65mm	16mm	8/12mm	50	1,000
A-TSSOP28T-6.1mm	28	6.1mm	.65mm	24mm	12mm	50	1,000
A-TSSOP44T-4.4mm	44	4.4mm	.5mm	24mm	12mm	42	1,000
A-TSSOP48T-6.1mm	48	6.1mm	.5mm	24mm	12mm	39	1,000
A-TSSOP56T-4.4mm	56	4.4mm	.4mm	24mm	12mm	42	1,000
A-TSSOP56T-6.1mm	56	6.1mm	.5mm	24mm	12mm	35	1,000
A-TSSOP64T-6.1mm	64	6.1mm	.5mm	N/A	N/A	28	N/A
A-TSSOP80T-6.1mm	80	6.1mm	.4mm	N/A	N/A	28	N/A

Notes

* 0.9mm body thickness for 4.4 and 6.1mm body widths.

* 0.85mm body thickness for 3.0mm body width.

* JEDEC package outline is standard.

* High conductivity copper leadframes.

* Very low-stress mold compound.

* Tube quantity may vary.

* Parts available on Tape and Reel upon request..

* Lead-free available with 100% Matte Sn alloy.

Part Description System

* Add "T" for Tubes or "TR" for Tape and Reel to end of part number.

* Add "Sn" to end of part number for Lead-Free.

TSSOP Package

Component Drawings
Data Sheets

	A TSSOP10T 3.0 1dwg		A TSSOP10T 3.0 2dwg
	A TSSOP14T 4.4 1dwg		A TSSOP14T 4.4 2dwg
	A TSSOP16T 4.4 1dwg		A TSSOP16T 4.4 2dwg
	A TSSOP20T 4.4 1dwg		A TSSOP20T 4.4 2dwg
	A TSSOP24T 4.4 1dwg		A TSSOP24T 4.4 2dwg
	A TSSOP28T 4.4 1dwg		A TSSOP28T 4.4 2dwg
	A TSSOP28T 6.1 1dwg		A TSSOP28T 6.1 2dwg
	A TSSOP32T 6.1 1dwg		A TSSOP32T 6.1 2dwg
	A TSSOP38T 4.4 1dwg		A TSSOP38T 4.4 2dwg
	A TSSOP38T 6.1 1dwg		A TSSOP38T 6.1 2dwg
	A TSSOP44T 4.4 1dwg		A TSSOP44T 4.4 2dwg
	A TSSOP48T 4.4 1dwg		A TSSOP48T 4.4 2dwg
	A TSSOP48T 6.1 1dwg		A TSSOP48T 6.1 2dwg
	A TSSOP56T 4.4 1dwg		A TSSOP56T 4.4 2dwg
	A TSSOP56T 6.1 1dwg		A TSSOP56T 6.1 2dwg
	A TSSOP64T 6.1 1dwg		A TSSOP64T 6.1 2dwg
	A TSSOP80T 6.1 1dwg		A TSSOP80T 6.1 2dwg
	A TSSOP8T 3.0 1dwg		A TSSOP8T 3.0 2dwg
	A TSSOP8T 4.4 1dwg		A TSSOP8T 4.4 2dwg

TSSOP Data Sheet
