Thin Quad Flat Pack (TQFP) Dummy Component
TQFP
Thin Quad Flat Pack
Dummy Thin Quad Flat Pack (TQFP) package dummy component for process evaluation provide the same benefit of the metric QFP package, but are thinner (body thickness of 1.0mm) and have a standard lead-frame footprint (2.0mm lead footprint). TQFPs are helping to solve issues such as increasing board density, die shrink programs, thin end-product profile and portability. Lead counts range from 32 to 176. Body sizes range from 5 x 5mm to 20 x 20mm. Copper lead-frames are used for the TQFP package. Lead pitches available for TQFP package are 0.4mm, 0.5mm, 0.65mm 0.8mm and 1.0mm.
|
TQFP Thin Quad Flat Pack 1.0mm Thick |
||||||||
|
Part Description |
Number |
Body |
Lead |
Footprint |
Quantity |
Tape |
Tape |
Quantity |
|
A-TQFP32-5mm-.5mm-2.0* |
32 |
5mm sq |
.5mm |
2.0mm |
360 |
16mm |
12mm |
1,000 |
|
A-TQFP32-7mm-.8mm-2.0* |
32 |
7mm sq |
.8mm |
2.0mm |
250 |
16mm |
12mm |
1,000 |
|
A-TQFP40-5mm-.4mm-2.0* |
40 |
5mm sq |
.4mm |
2.0mm |
360 |
16mm |
12mm |
1,000 |
|
A-TQFP44-10mm-.8mm-2.0* |
44 |
10mm sq |
.8mm |
2.0mm |
160 |
24mm |
16mm |
1,000 |
|
A-TQFP48-7mm-.5mm-2.0* |
48 |
7mm sq |
.5mm |
2.0mm |
250 |
16mm |
12mm |
1,000 |
|
A-TQFP52-10mm-.65mm-2.0* |
52 |
10mm sq |
.65mm |
2.0mm |
160 |
24mm |
16mm |
1,000 |
|
A-TQFP64-7mm-.4mm-2.0* |
64 |
7mm sq |
.4mm |
2.0mm |
250 |
16mm |
12mm |
1,000 |
|
A-TQFP64-10mm-.5mm-2.0* |
64 |
10mm sq |
.5mm |
2.0mm |
160 |
24mm |
16mm |
1,000 |
|
A-TQFP64-14mm-.8mm-2.0* |
64 |
14mm sq |
.8mm |
2.0mm |
90 |
32mm |
24mm |
750 |
A-TQFP80-12mm-.5mm-2.0* |
80 |
12mm sq. |
.5mm |
2.0mm |
119 |
24mm |
24mm |
1,000 |
|
A-TQFP80-14mm-.65mm-2.0* |
80 |
14mm sq |
.65mm |
2.0mm |
90 |
32mm |
24mm |
750 |
|
A-TQFP100-14mm-.5mm-2.0* |
100 |
14mm sq |
.5mm |
2.0mm |
90 |
32mm |
24mm |
750 |
|
A-TQFP120-14mm-.4mm-2.0* |
120 |
14mm sq |
.4mm |
2.0mm |
90 |
32mm |
24mm |
750 |
|
A-TQFP128-14mm-.4mm-2.0* |
128 |
14mm sq |
.4mm |
2.0mm |
90 |
32mm |
24mm |
750 |
|
A-TQFP128-20mm-.5mm-2.0* |
128 |
20mm sq |
.5mm |
2.0mm |
60 |
44mm |
24mm |
500 |
|
A-TQFP144-20mm-.5mm-2.0* |
144 |
20mm sq |
.5mm |
2.0mm |
60 |
44mm |
24mm |
500 |
|
A-TQFP176-20mm-.4mm-2.0* |
176 |
20mm sq |
.4mm |
2.0mm |
60 |
44mm |
24mm |
500 |
Notes
* Dummy TQFP is available in die up configurations in 1.0mm thickness only.
* 5 x 5mm to 20 x 20mm body size (JEDEC Standard).
* Copper leadframes.
* 1.0mm body thickness for TQFP.
* Moisture sensitivity is JEDEC level 3.
* Lead-free parts are available with SnBi or 100% Matte Sn finish.

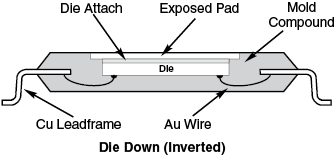

* * = Available as an Exposed Pad L/TQFP Package by Amkor. The ExposedPad L/TQFP can increase heat dissipation by as much as 110% over a standard L/TQFP. The ExposedPad L/TQFP is a cost effective, high frequency leadframe solution to thermal management when the die attach pad is soldered to the PCB.
* Parts may also be available NiPdAg-Au & NiPdAu. Call for availability. Minimums may apply.
* SnPb parts no longer available.
Part Description System
* Add "ePad" to beginning of part number when ordering ExposedPad package.
* Add "TR" to end of part number for Tape and Reel.
* Add "LF" to end of part number for Lead-Free, i.e Sn or SnBi.

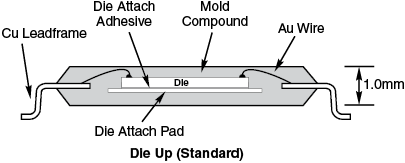

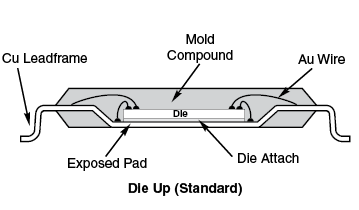

Exposed Pad L/TQFP Package
TQFP Package
